Single Hung Vinyl Windows
Built to Your Size for New Construction and Replacement
A Window Solution for Any Project
The 900 Series Single-Hung Window pairs classic style with energy-efficient, low-maintenance vinyl. The upper pane is fixed. The bottom sash slides up and tilts in, so cleaning and ventilation stay simple. A brickmold exterior detail and low-profile sashes give it a clean, finished look, suitable for commercial or residential applications.

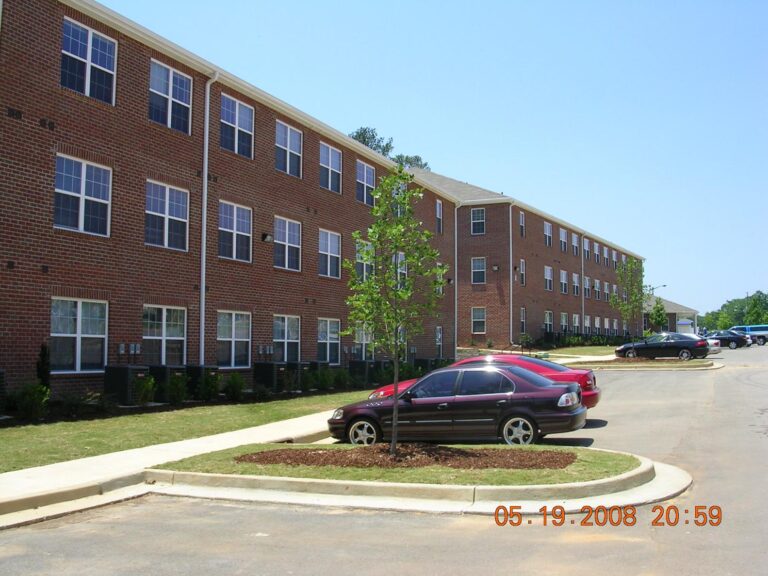

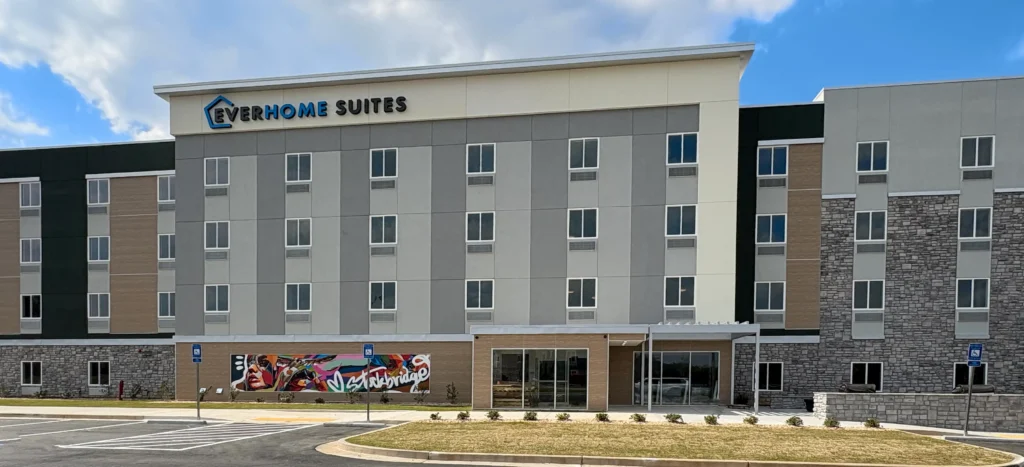

The vinyl resists fading and will not chip or peel. Standard features include Cardinal 270 LoE glass and a Duraseal® warm-edge spacer, block and tackle balance, composite hardware, double locks and half screen, for reliable insulated glass performance. The 900 Series works for both new construction with a nail fin and j-channel or for replacement projects where a box unit is needed. The 2 7/8″ jam makes this window an excellent option to replace old metal windows in homes, apartments, or hotels.
Every window is built to your size at our factory in Tucker, with a fast turnaround, and is backed by a comprehensive warranty.
We also have stock sizes availabe in the 900 Series.
The Vinyl Window for Every Project

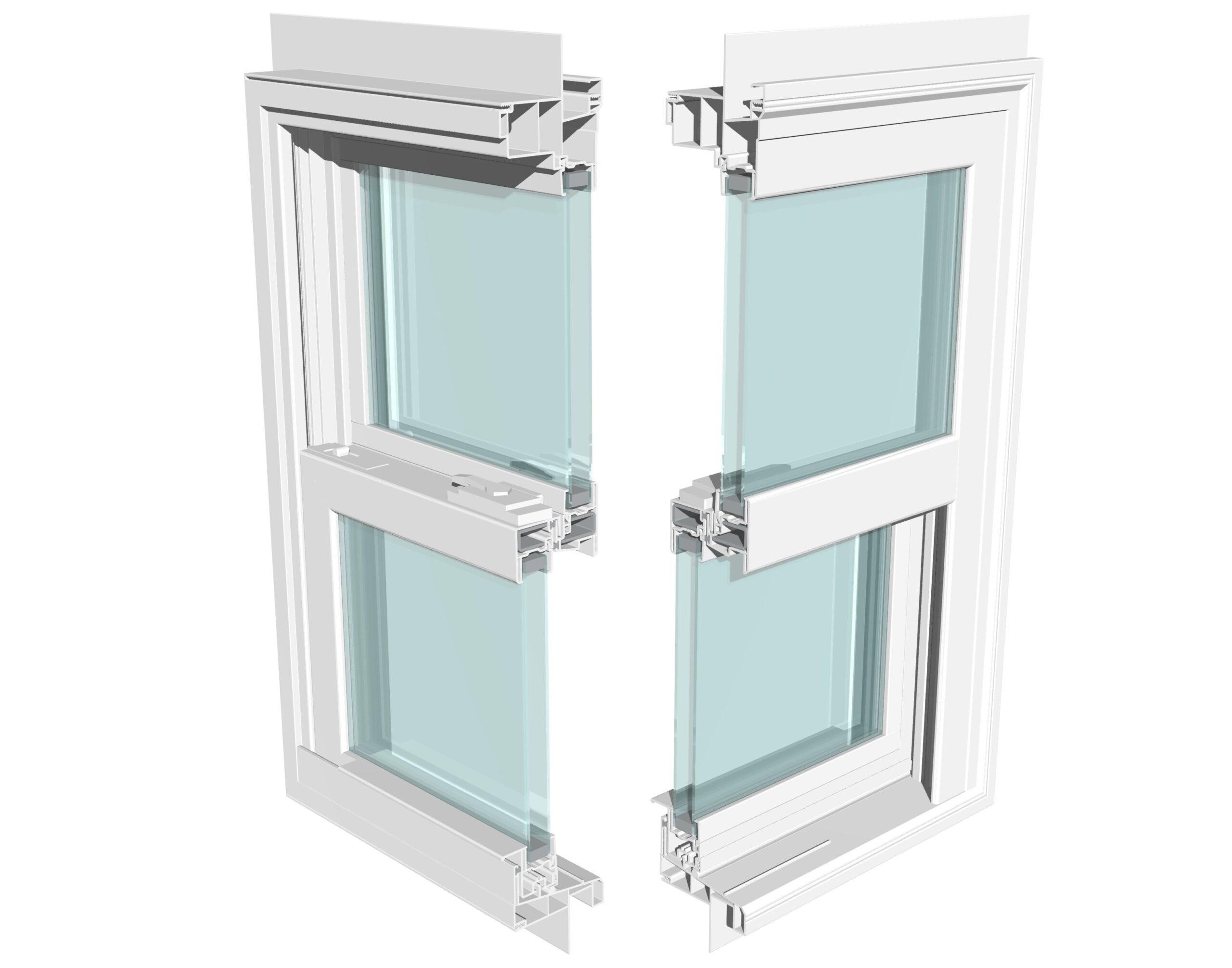

900 Series Single Hung
Fusion-welded frame and sash
Corners are welded shut, not screwed. No rot, no rust, no warping. Featuring Chelsea Building Products Rigid PVC Extrusions.
Cardinal 270 LoE insulated glass package
A 3/4 inch dual-pane unit with Cardinal's LoE coating built in. It blocks heat and UV rays while keeping natural light coming through. Argon gas fill is available. Cardinal 366 LoE - optional
Duraseal warm edge spacer
Runs around the inside edge of the glass unit. Keeps the glass edge warmer, cuts down on condensation, and helps the seal last.
Dual weatherstripping
Sealed on the sash to keep out air, water, and dirt.
Tilt-in bottom sash
The bottom sash opens upward and tilts inward. Clean the outside glass from inside your home, no ladder needed. The top sash is fixed, creating a picture window appearance with a larger glass area.
BSI inverted balance system
Holds the bottom sash at any height. No slamming, no sticking, no fighting the window to stay open.
Integral sash interlocks
Locks built into the sash. Units 28 inches or wider get double locks for a tighter closure.
Specifications
Jamb Thickness: 2-7/8"
Color White or Tan
Operating Sash: Bottom sash (single-hung)
New construction profile Includes a brickmold-look exterior, J-channel, and nail fin for new construction. Also available as a box replacement.
Available Styles
Available Styles
- Single-hung

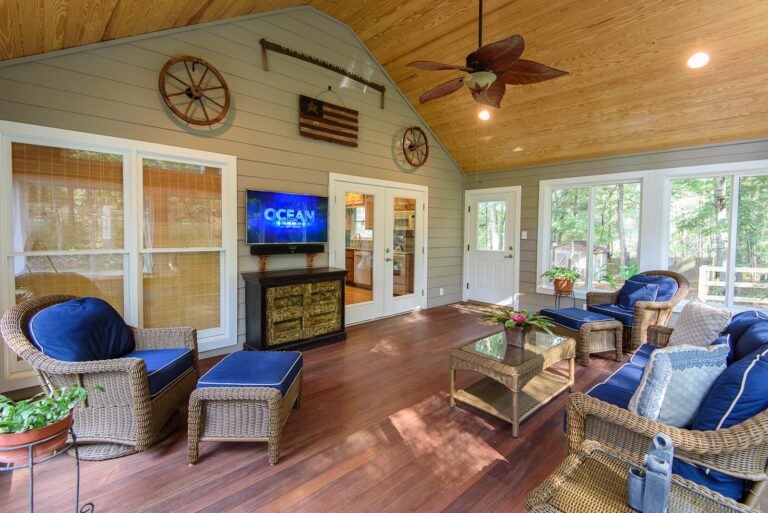

- 2 lite Horizontal Sliders
- 3 lite Sliders

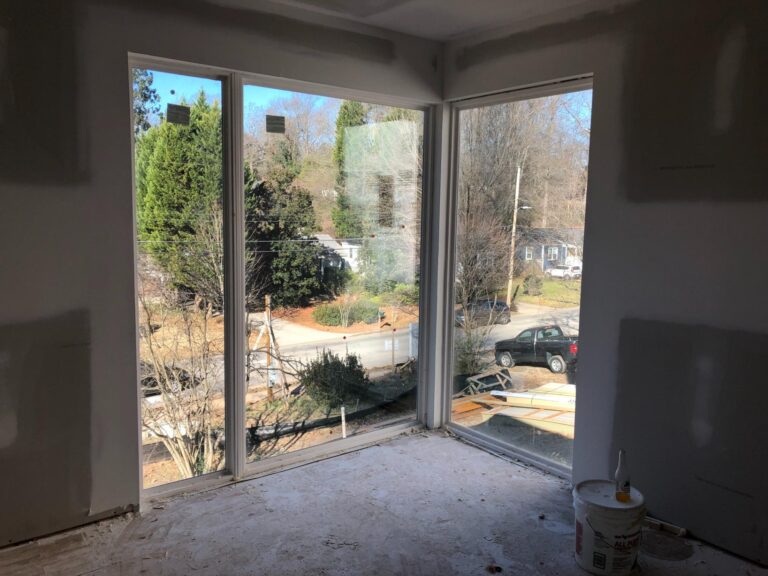

- Fixed Picture Window
- Transom
- Twins
- Triples

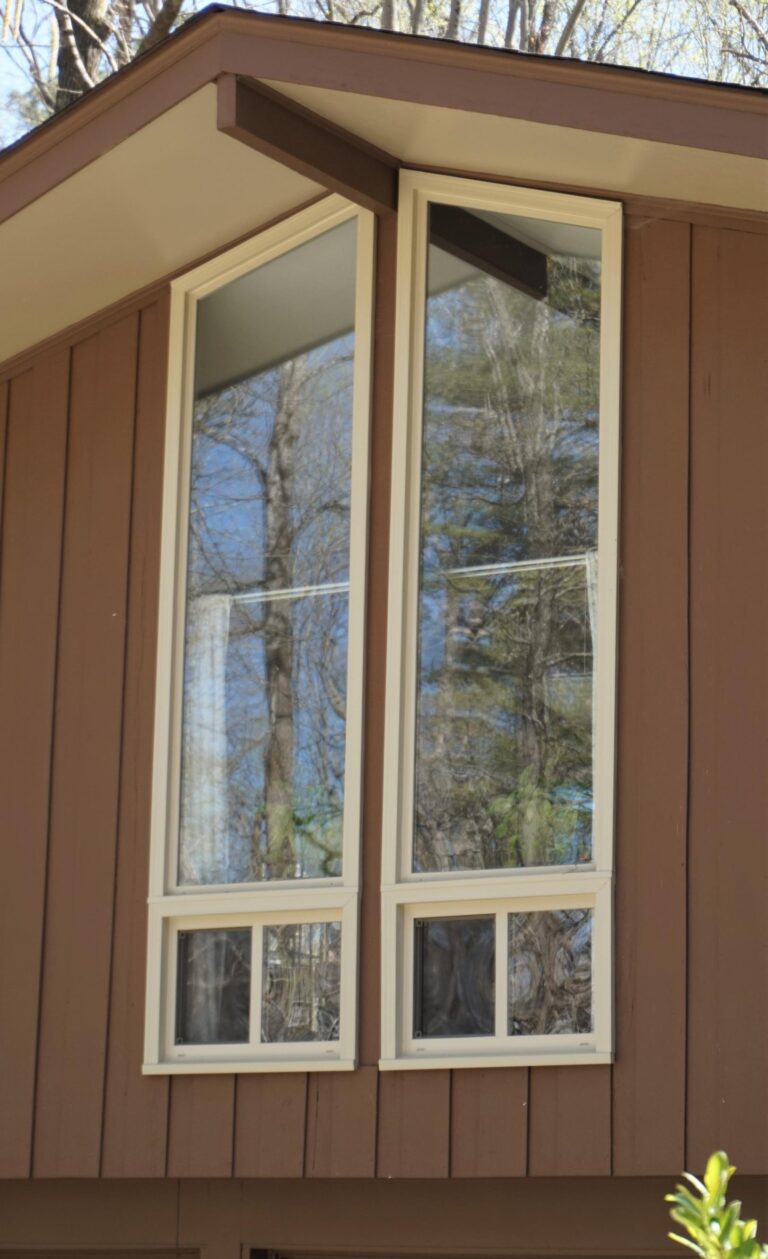

- Combination Units and Shapes
Designed For Every Project
How It's Built
- Fusion-welded frame and sash. No flaking, no fading.
- Manufactured with Chelsea Vinyl Profiles
- Frame thickness: 3 1/4"
- Both sashes open and tilt in for easy cleaning
- Four Jaks constant force balance system for smooth operation
- Dual weatherstripping on both sashes
- Composite lock, vent stops and tilt latches
- Sloped sill for water drainage to the exterior
- Unit is fully wrapped in foam for added insulation
- Optional PVC sash and frame stiffener
- Available as new construction with nail fin and j-channel or as replacement as shown
What's Included
- Low-profile aluminum half-screen
- Composite locks
- Constant force balance with optional cover
- 4-sided foam wrapped frame
- White or tan vinyl
- Cardinal 270 LoE
- Duraseal Warm Edge Spacer system
- Custom grids and glass options available
- Sill angle and head expander
- Available as new construction with nail fin and j-channel or as replacement as shown
Why choose Vinyl Windows
Energy Efficient
Multi-chamber vinyl frames, combined with Low-E glass and double-pane insulated glass units, improve the insulation and reduce heat gain from the sun in your home.
Low Maintenance
Vinyl never needs painting and won't rot, rust, peel, or require frequent upkeep.
Long-Lasting
High-quality vinyl resists moisture, insects, corrosion, and weathering.
Cost-Effective
Vinyl windows have most of the same performance characteristics as higher-end options at a significantly lower price. Making Vinyl a good long-term investment.
Versatile Design
Available in a wide range of styles, colors, and configurations.
Smooth Operation
Modern vinyl windows are engineered for easy operation and reliable performance.
Environmentally Friendly
mproved energy efficiency can reduce heating and cooling costs, lowering a home's overall energy consumption and eliminating the need for painting and future repairs.
Glass & Energy Performance
Metric
270 LoE / Argon Duraseal ?LoE glass has a thin coating on the glass that reflects heat and UV rays without blocking light. It helps keep your home cooler in summer and warmer in winter without darkening your windows.
366 LoE / Argon Duralite
U-Factor ?Measures how well the window keeps heat inside. The lower the number, the better it holds heat in during winter and keeps it out in summer.
0.29
0.27
SHGC (No Grids) ?Measures how much heat from sunlight comes through the glass. A lower number means less solar heat enters your home. Important in Georgia where summer sun is strong.
0.30
0.22
Air Infiltration ?Measures how much outside air leaks through the window. Lower is better. Our 700 Series comes in well under the industry threshold.
<0.30 CFM
<0.30 CFM
Design Pressure ?(DP) Measures how much wind force the window can handle without failing. DP 35 is the rating for standard residential use. Higher numbers mean the window holds up to stronger winds.
DP 35
Water Resistance ?Tested by pushing water against the window at 5.25 PSI of pressure. No leakage means the seal holds under real rain and storm conditions.
No Leakage @ 5.25 PSI
Certification
AAMA Certified ?AAMA is the industry organization that sets performance standards for windows. Certification means the window was independently tested and passed those standards, not just claimed by the manufacturer.
Forced Entry ?The window was tested to resist being pushed or pried open from the outside. Passed means it held up to the standard force requirements.
Passed
Cardinal Low-E glass, standard on every 900 Series
Learn More
Standard
Cardinal LoE-270
A solid all-around glass for Georgia's climate. Blocks summer heat and UV rays while keeping good natural light coming through. Works well for most homes and most window orientations.
0.29
U-Factor
0.28
SHGC
70%
Visible light
Upgrade
Cardinal LoE-366
Three layers of coating instead of two. Blocks more solar heat and up to 95% of the UV rays that fade furniture and flooring. A good choice for south-or west-facing windows. Clear view, no tinting.
0.29
U-Factor
0.21
SHGC
65%
Visible light
Argon gas fill is available on both options. Argon is a heavier gas than air and slows heat transfer between the two panes, improving insulation.
Duraseal warm edge spacer system by Quanex
Learn More
Dura Platform Warm Edge Spacer System
Preassembled with sealant and desiccant
The spacer, sealant, and desiccant come as one unit. The desiccant keeps moisture out of the space between the panes. The sealant keeps argon gas in.
Keeps the glass edge warmer
Breaks the cold transfer path at the edge of the glass. Warmer edges mean less condensation and a more comfortable room near the window.
Helps the seal last longer
Reduces stress on the edge seal caused by temperature swings. A longer-lasting seal means the glass stays clear and the insulating gas stays in.
Standard
Duraseal
Warm edge performance included with every 700 Series window.
Upgrade
Duralite
Higher thermal edge performance. Pairs with the LoE-366 glass upgrade.
Standard and upgrade note: The standard offering features Cardinal LoE-270 glass and the Duraseal warm edge spacer system. For added performance, you can upgrade to Cardinal LoE-366 and the Duralite spacer system.
Save More Energy & Enjoy Lost-Lasting Windows
Every 700 Series window uses Cardinal Low-E glass paired with the Dura Platform warm edge spacer system. Together they reduce heat transfer and help keep the seal tight for the life of the window.
- 3/4" insulated glass unit
- Dura Platform warm edge spacer system
- Cardinal Low-E 270 glass standard
- Cardinal Low-E 366 available as upgrade
- Argon gas fill available
Dura Platform Warm Edge Spacer System

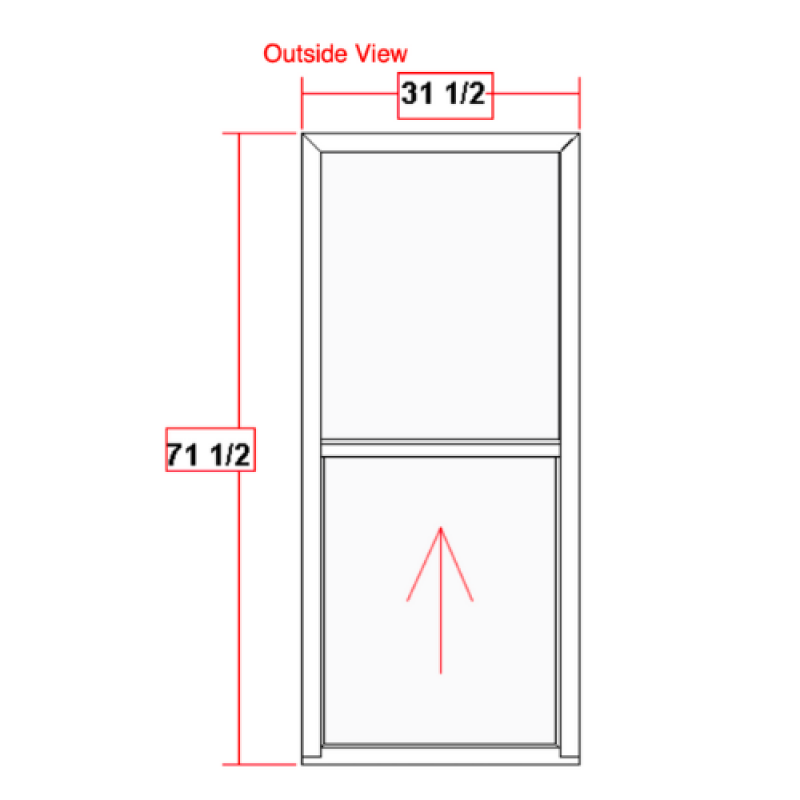

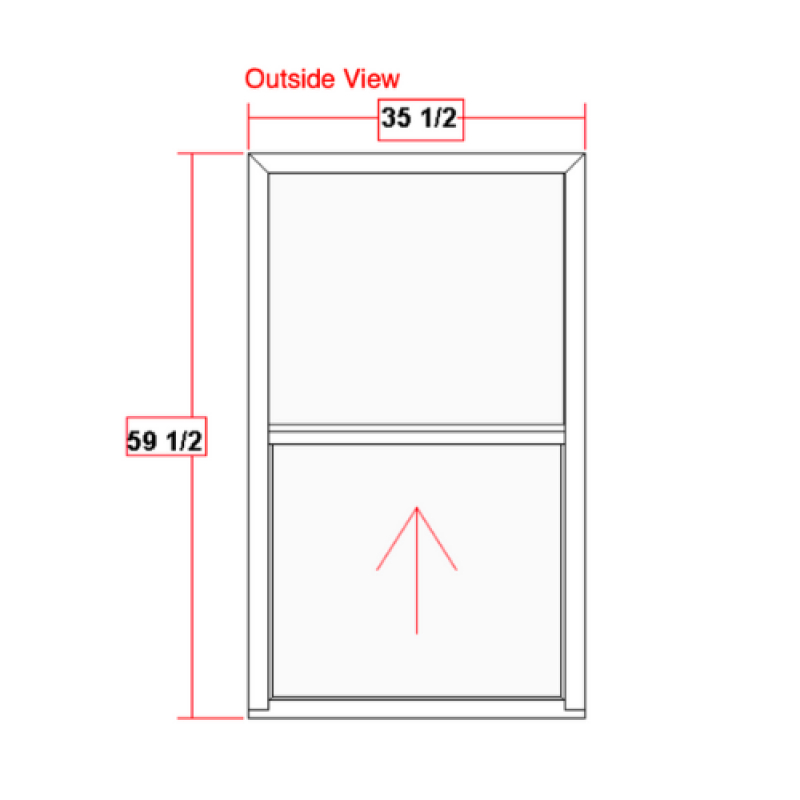

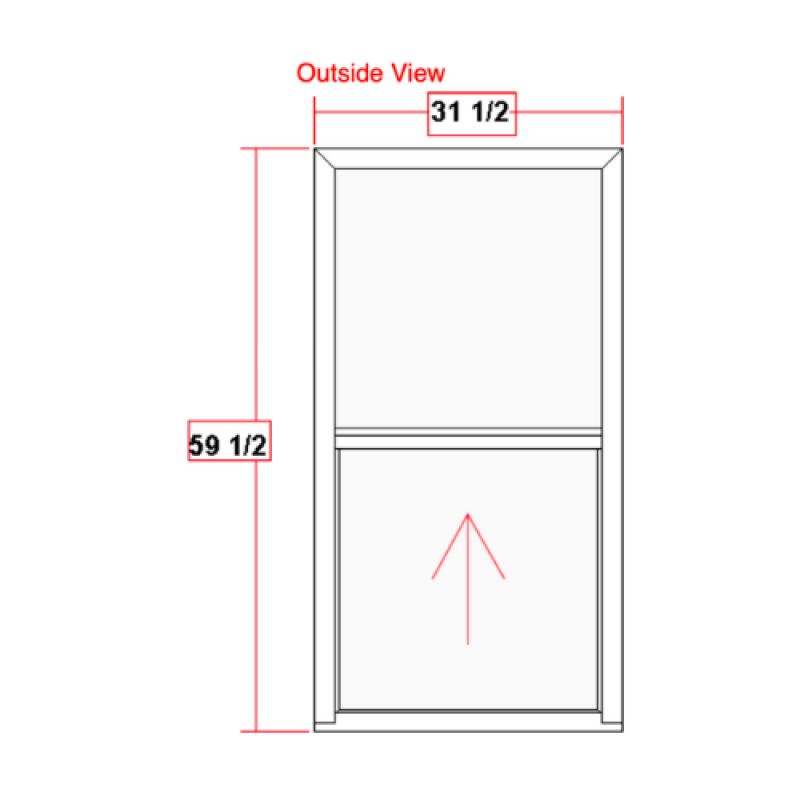

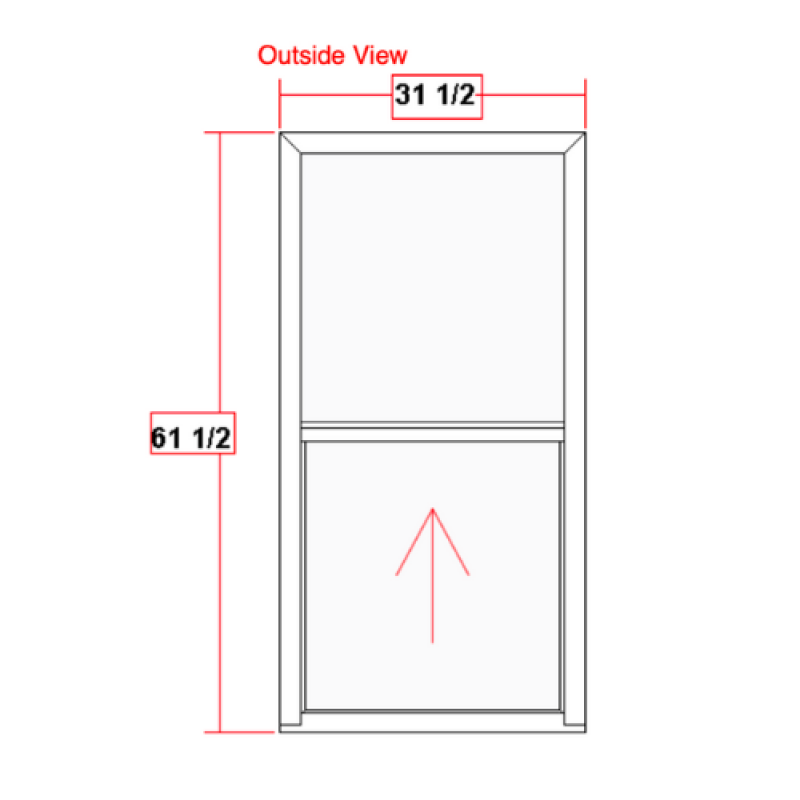

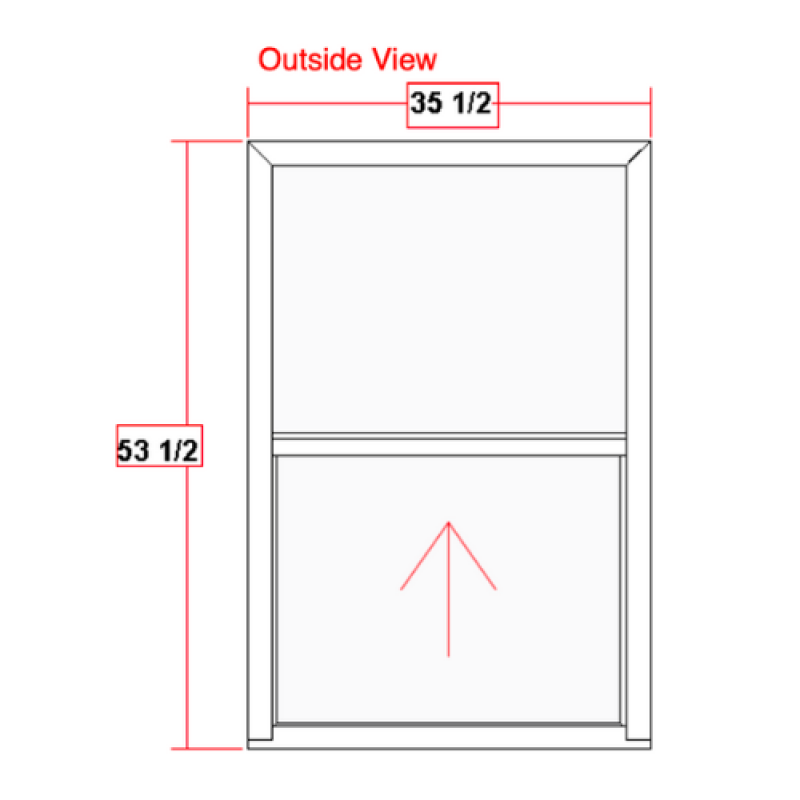

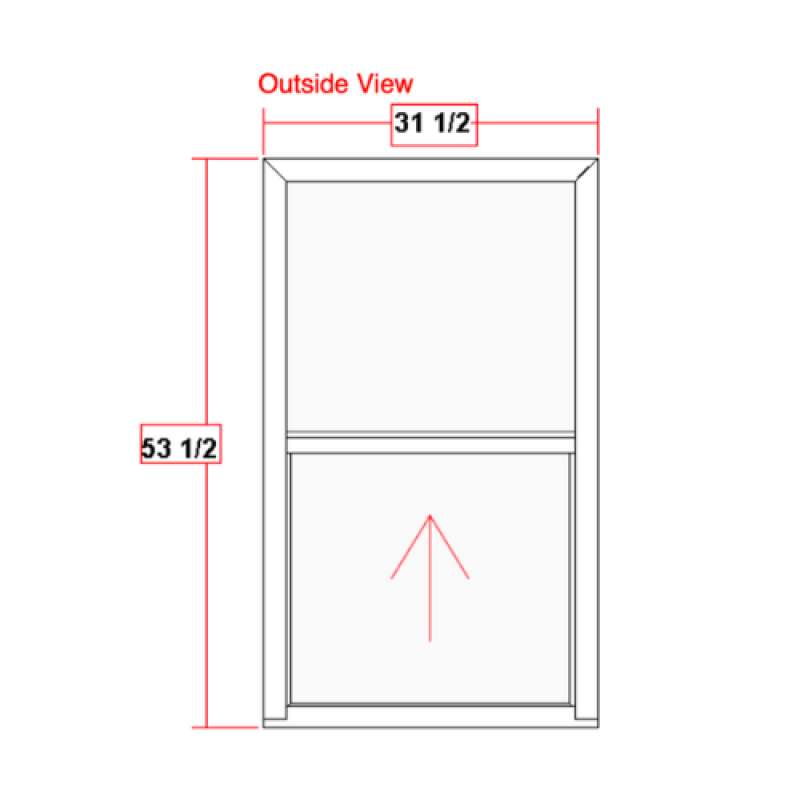

In-Stock Windows, Ready For Pickup
Some 900 Series sizes are built and waiting at our Tucker factory. No lead time, no wait. Pick them up and keep your project moving.
Right now, we stock single-hung and picture windows in select standard sizes. Stock changes, so call ahead to confirm what is on the shelf before your next project.
$294.00
$294.00
$270.00
$238.00
$248.00
$248.00
Most Common grid patterns.
Custom grids are available on any 900 Series window.
Colonial
Prarie
Perimeter
Cross
Top Only - 2V0H
Two clean, classic finishes.
